ADC ADView 2 Modular Diagnostic Station

ADC ADView 2 Modular Diagnostic Station

ADC, a world leader in core diagnostic products for more than 30 years, has once again partnered with SunTech Medical, the premier developer of innovative blood pressure technology, to create the next generation in modular diagnostics. The ADC ADView 2 starts with a blood pressure base unit. From there, optional modules and accessories allow you to create a diagnostic solution perfectly suited to your needs.

The ADView 2 easily captures automated blood pressure measurements at the touch of a button. Our non-invasive blood pressure module uses the oscillometric method, with both pulse rate and the mean arterial blood pressure (MAP*) displayed in about 30 seconds. With seven available cuff sizes, ranging from child to thigh, the ADView 2 can be used for patients ages three and older. Adult Plus and Large Adult Plus cuffs come standard.

The original ADView was the first diagnostic station to offer a manual mode (an innovation developed even earlier for our e-sphyg IITM), allowing you to capture blood pressure with your stethoscope using the traditional auscultatory method without changing cuffs. Manual mode provides important versatility for your patients with arrhythmias or other complex needs.

With the ADView 2, ADC also offers a user-definable averaging mode with programmable options including two to five readings, start and interval delays, and first-measurement exclusion. Averaging is recognized as a key component of accurate blood pressure measurement and was used in the recent SPRINT trial conducted by the National Institute of Health.

The optional ADView 2 modules and accessories allow you to create a diagnostic station perfectly suited to your needs. Add them at the time of purchase and we’ll ship your ADView 2 configured. Or add new modules as you need them to upgrade in the field. The ADC connect-and-go construction makes expanding your ADView 2 effortless!

Add a Covidien Filac 3000 Thermometry module to your ADView 2 for an oral or axillary temperature reading in as little as 3-6 seconds. The module features both Fahrenheit and Celsius scales, switchable with the touch of a button, a cold mode for lower ranges, and a built-in, color-coded storage well for the probe and box of 20 disposable probe covers (included). An optional color-coded rectal chamber/probe is also available.

Add a pulse oximetry module to your ADView 2 to measure oxygen saturation of arterial blood flow in about 10 seconds. The ChipOx NellcorTM-compatible SpO2 module displays pulse-rate signal strength during measurement, and comes with a reusable finger clip sensor and 8-foot cable. An optional pediatric/multi-site sensor is also available. Alternatively, choose the Masimo SET SpO2 module upgrade.

Standard Features for all ADView 2 Models

• Clinical-grade Advantage BP technology from SunTech Medical
• Contemporary, compact design with an integrated handle and simple, easy-to-read display
• Customizable BP averaging options
• Manual blood pressure mode for real-time BP verification
• Pediatric Mode to ensure accurate measurements for younger patients
• Lithium-ion power for longer-lasting battery life and a lighter weight
• Next-generation EMR ready with HL7 messaging for electronic data transfer
• Network enabled with built-in Ethernet or optional Wi-Fi (Wi-Fi module is sold separately)
• Built-in memory with up to 99 charting sessions
• LCD display
• Lithium-ion power for longer-lasting battery life and a lighter weight
• 2 USB ports
• Firmware upgradeable

Additional Information

• The ADView 2 BP base unit includes: Rechargeable lithium-ion battery; U.S. power cord; 10-foot length of tubing; Adult Plus and Large Adult Plus cuffs; Mini-USB to USB Cable; Quick Reference Guide; Quickstart Guide.
• Temperature module includes: Oral/axillary probe and well (blue) and box of 20 probe covers.
• SpO2 module includes: Adult finger sensor and 8-foot extension cable.
• Can be configured with an optional barcode scanner (sold separately)
• Wireless connectivity is optional (sold separately)
• Dimensions: Size (without thermometer option): 8" H x 6.75" W x 5.2" D or 215mm H x 190mm W x 140mm D
• 3-Year Warranty on: Main unit, SpO2 modules and Temperature modules
• Manufacturer: American Diagnostic Corporation

Available ADView 2 Models

• 9005BP: ADView 2 BP: Blood pressure base unit

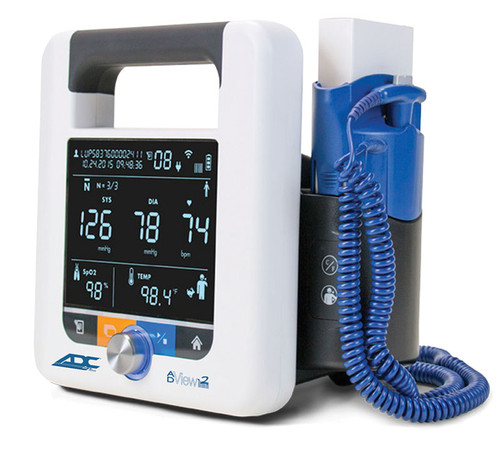

• 9005BPTO: ADView 2 BP/Temp: Blood pressure base unit with temperature module
• 9005BPS: ADView 2 BP/SpO2: Blood pressure base unit with ChipOx Nellcor-compatible SpO2 module

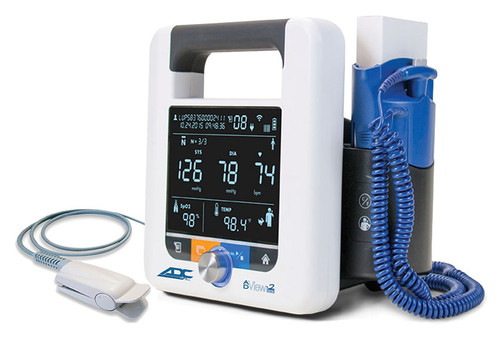

• 9005BPSTO: ADView 2 BP/SpO2/Temp: Blood pressure base unit with ChipOx Nellcor-compatible SpO2 module and temperature module
• 9005BPSM: ADView 2 BP/Masimo SET: Blood pressure base unit with Masimo SET SpO2 module
• 9005BPSMTO: ADView 2 BP/Masimo SET/Temp: Blood pressure base unit with Masimo SET SpO2 module and temperature module
