Doran Handrail Scale DS7060-HR with Height Rod

Doran Handrail Scale Model DS7060-HR with Height Rod

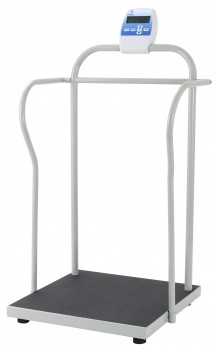

This is the Doran Handrail Scale Model DS7060 with a height rod.

Heavy duty construction, accuracy, and reliability all at an economical price. The welded tubular steel structure of the DS7060 provides a handrail at the ideal height and wraps around the generously sized weighing platform. The 800 pound capacity low-profile scale platform is covered edge to edge with a non-skid surface.

Moving the scale from room to room is easy. Simply tilt the scale back on the two built-in, non-marking wheels and roll the scale to its new destination. The large diameter foot pads ensure the scale remains in place when the patient steps on and off the scale.

The scale software was specifically designed to provide an accurate weight even if the patient is unsteady and is unable to remain perfectly still. The Reweigh feature allows a second weight to be acquired while the patient remains on the platform.

The DS7060 features RS-232 and Ethernet ports allowing the recording of a patient’s weight and BMI value into a PC based Excel Spreadsheet with the optional Excelerator software. Patient data can also be sent to an optional printer or EMR system.

Specifications

• Maximum Capacities: 800 lbs.
• Resolution Range: 0.2lb (0.1kg)
• Scale Dimensions: 26" W x 24" D x 50" H
• Platform Size: 24" W x 24" D x 3" H
• Display: 1” High LCD
• Indicators: Average Hold, BMI, Center of Zero, ft:in, Last Weight, lb, kg, Motion, Net, Stable Hold
• Controls: BMI, Reweigh, Units, Zero, Up, Down
• Units: lbs., kgs
• Output: Bi-directional RS-232, USB
• Construction: Painted Steel with Plastic Trim
• Power: AC Adapter (Included), Six AA Batteries (Included)
• Warranty: Two Years
• Manufacturer: Doran Scales
• Manufacturer's Product ID: DS7060-HR
