Burton AIM-200 OR Surgical Light

Burton AIM-200 OR Surgical Light in Multiple Configurations

Burton's new AIM-200 OR surgical light provides versatility, amazing illumination, unparalleled aesthetics and many more features that make it the right light for any procedure. Delivering true rendition of colors, this light is ideal for long hours of use with three cool 35-watt IRC halogen bulbs  each rated with a 1400-hour average bulb life. The AIM-200 OR is the first Operating Room light that has floor, wall, single- and double-ceiling mounts available. With its 360º limitless arm-and-mounting-system-rotation around the vertical axes on the single ceiling models, the AIM-200 OR is the most versatile and practical light for the Operating Room environment.

Light pattern free of cast shadows

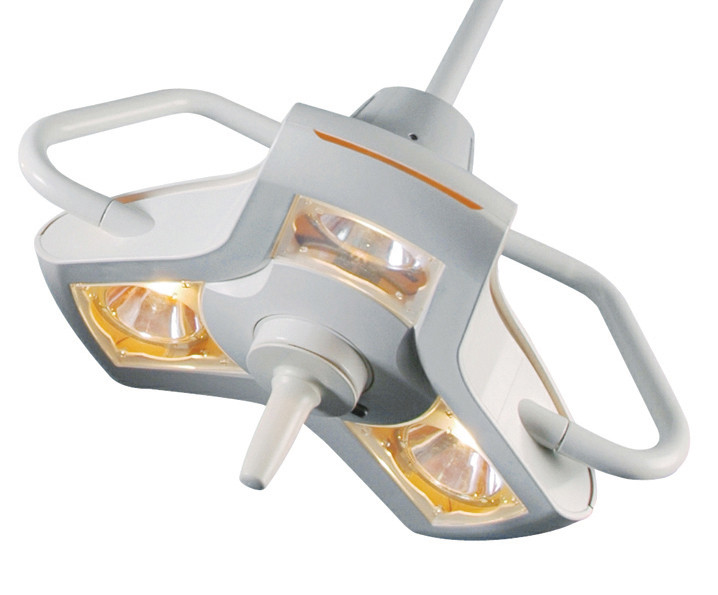

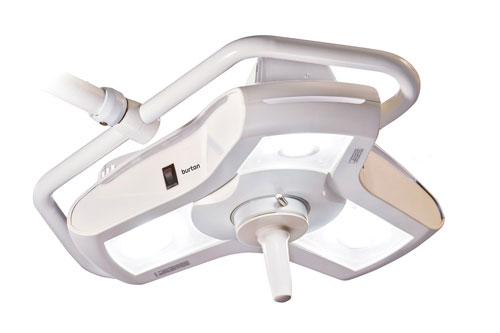

The AIM-200 OR has a unique Y-Shaped design, which facilitates placement of the lighthead around the physician's head minimizing the obstruction of light into the surgical field. The multiple reflectors of the AIM-200 OR can be tilted by rotating the sterilizable light handle to adjust the size and pattern of the light to the working area.

Unlimited rotation and maximum reach

The AIM-200 OR's degree limitless arm-and-mounting-system-rotation around vertical axes on single ceiling models is a key feature previously available only on more expensive OR lights. The arm system also provides a maximum reach of 63 inches and diameter of 10 inches, allowing it to illuminate the patient from head to toe with no drift.

Features:

• 90,000 lux (8361 fc) at 1 meter
• 3700 K color temperature
• CRI (Color Rendering Index) of 96
• Larger and adjustable light pattern
• Unlimited rotation and maximum reach of 63" (160 cm)
• Light field diameter: 10" - 12" (25 cm - 30 cm)
• Depth of illumination: 47" (119 cm)
• Adjustable focusing by rotating center handle

• Available versions: floor stand, wall mount, single ceiling, and dual ceiling

• 120V standard; 100 and 230 / 240V models available
• 5-year limited warranty
• Contact us if you have any questions about the models and the best fit for your organization

Certifications and Approvals

• UL/IEC 60601-1, IEC 60601-1-2, EN/IEC 60601-2-41 and CAN/CSA C22.2 NO. 601.1 M90 certified
• CE marked

Manufacturer: Burton Medical
