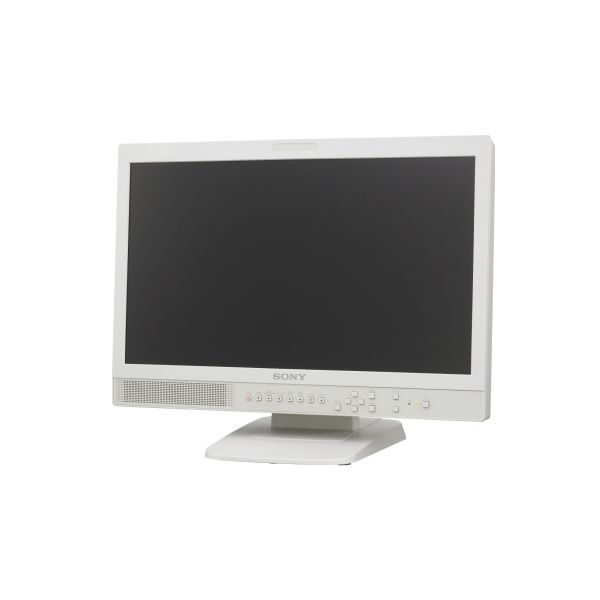

Sony LMD2110MD 21" Surgical Monitor

Sony LMD2110MD Surgical Monitor

• Mutiple input interfaces: Composite, Y/C, RGB/YPBPR, HDMI (compatible with DVI) as standard
• Optional input interface: SD/HD-SDI input x 1 with optional input adaptor BKM-341HS
• Selectable color temperature settings
• On screen display (OSD) for seven languages
• Built-in green LED tally lamp to indentify when images are captured or recorded
• Parallel remote control Interface
• Vesa mounting standard compliance (100 mm spacing)
• Built-in desktop stand with tilt function
• Compliance with medical safety standard UL60601-1

General

• Dimensions (W x H x D) (with stand): 515 x 403 x 264 mm (20 3/8 x 15 7/8 x 10 1/2 inches)
• Dimensions (W x H x D) (without stand): 515 x 355 x 86 mm (20 3/8 x 14 x 3 1/2 inches)
• Mass: 8.6 kg (18 lb 15 oz)
• Mass (without stand): 6.9 kg (14 lb 19 oz)
• Operating humidity: 30% to 85% (no condensation)
• Operating temperature: 0°C to 35°C (32°F to 95°F)
  Recommended: 20°C to 30°C (68°F to 86°F)
• Operating, storage and transport pressure: 700 hPa to 1060 hPa
• Power consumption: Maximum: approx. 60 W, 1.0 A to 0.5 A
• Power requirements: AC 100 V to 240 V, 50/60 Hz
• Storage and transport humidity: 0% to 90%
• Storage and transport temperature: -20°C to +60°C (-4°F to +140°F)

Input

• Audio: Phono jack (x2), –5 dBu 47 kilohms or higher
  OPTIONAL AUDIO IN: Phono jack (x1), –5 dBu 47 kilohms or higher
• Composite: BNC (x1), 1.0 Vp-p ±3 dB sync negative
• External sync: BNC (x1)
  0.3 Vp-p to 4.0 Vp-p ±bipolarity ternary or negative polarity binary
• HDMI: HDMI (x1)
• Option in connector: D-sub 9-pin (x1), female
• Parallel remote: Modular connector 8-pin (x1) (pin-assignable)
• RGB, Component: BNC (x3)
  RGB: 0.7 Vp-p ±3 dB (Sync On Green, 0.3 Vp-p sync negative)
  Component: 0.7 Vp-p ±3 dB
  (75% chrominance standard color bar signal)
• Y/C: Mini DIN 4-pin (x1)
  Y: 1.0 Vp-p ±3 dB sync negative,
  C: 0.286 Vp-p ±3 dB (NTSC burst signal level),
  0.3 Vp-p ±3 dB (PAL burst signal level)

Output

• Audio monitor out: Phono jack (x2), loop-through
• Composite: BNC (x1), loop-through, with 75 ohms automatic termination
• External sync: BNC (x1), loop-through, with 75 ohms automatic termination
• RGB, Component: BNC (x3), loop-through, with 75 ohms automatic termination
• Speaker (built-in): 0.5 W (mono)
• Y/C: Mini DIN 4-pin (x1), loop-through, with 75 ohms automatic termination

Picture Performance

• Aspect: 16:9
• Colors: Approx. 16.7 million colors
• Effective picture size (H x W) (Diagonal): 477 x 268 mm (18 7/8 x 10 5/8 inches), 547 mm (21 5/8 inches)
• Resolution: 1920 x 1080 pixels (Full HD)
• Type: a-Si TFT Active Matrix LCD
• Viewing angle (LCD panel specification): 170°/160° (typical) (horizontal/vertical contrast >10:1)
